Yubico with Azure AD MFA

Yubikey 5C and Yubikey NFC

I recently bought the Yubikey 5C and Yubikey NFC from yubico.com.
Yubico is in short summary a company behind Yubikey hardware auth device supporting (OTP,U2F and FIDO2) protocols. You can read much more information and details at yubico.com.

Since I’m Interested In Security and Identity authentication, I wanted to do more testing with Azure MFA for OATH hardware tokens (public preview) and Windows 10 Passwordless (private preview). I’m also looking into the use of NFC, so that’s why Yubikey NFC for iOS device. LastPass is the only App I have found that leverages this functionality. Hopefully, there will be more apps will get this as developers make use of the SDK. In this guide I will go trough the steps of Azure MFA for OATH hardware tokens (public preview)

Quick FAQs Yubikeys with Azure MFA

  • Only public preview for AAD
  • Works with Azure cloud MFA even though it’s in Azure MFA settings of the AAD portal.
  • AAD Supports OATH-TOTP SHA-1 Tokens (30 or 60 sec)
  • AAD Only supports 3 Yubikeys, one MS Authenticator app, phone for each user account.

Configure Azure MFA for OATH hardware tokens (public preview)

Prerequisites

  • Azure tenant with AAD Premium
  • MFA already enabled
  • Have at Least 1 Yubikey. For the purpose of this guide, I’m using a Yubikey 5C
  • Yubico Manager Command (to extract Yubikey Serial number)
  • Yubico Authenticator

Step 1 ) Configure Yubikey


Download and install ( Windows 10, MacOs or Linux)

Start the Yubico Manager Command from terminal/powershell.

To get the Serial Number of YubiKeys. Use command

.\ykman.exe List

To link TOTP key for Yubikey. Use command

.\ykman.exe oath add UPN@<tenant name>onmicrosoft.com

Next step requires you to add a Base32 Key.
Use OpenSSL to create a Base32 key.
Use “openssl rand 32” to generate Base32 key if you have OpenSSL on your pc.

Copy your Base32 Key to after you have run the “.\ykman.exe oath add” command.

Step 2) Configure Azure MFA

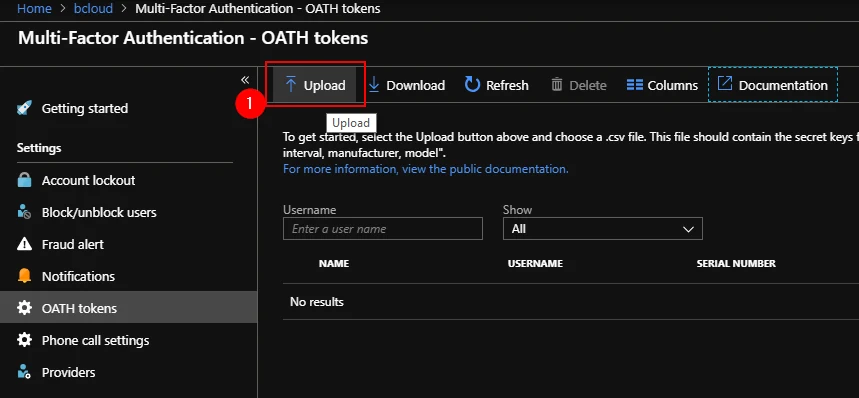

Go to the AAD portal and go to MFA server. In settings go to OATH Tokens. Choose Upload CSV to Azure.

The CSV has to be in a specific format like the example below

upn,serial number,secret key,timeinterval,manufacturer,model
UPN@.onmicrosoft.com,1234567, 1234567890abcdef1234567890abcdef,30,YubiKey,HardwareKey


After the Upload has successfully completed, go to the refresh button.

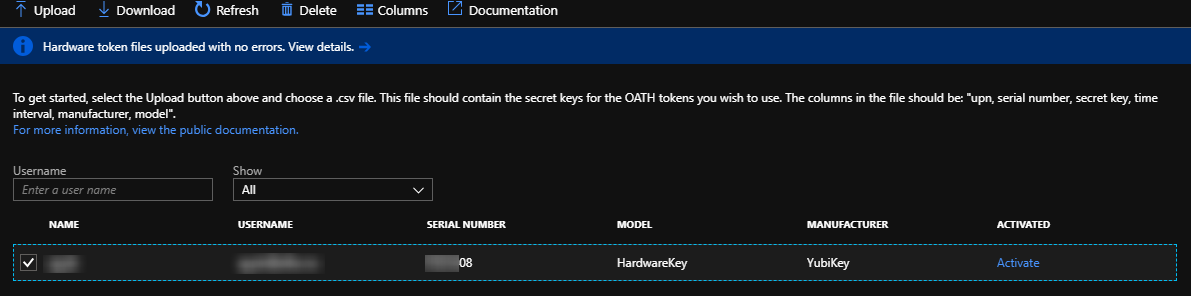

Choose Activate.

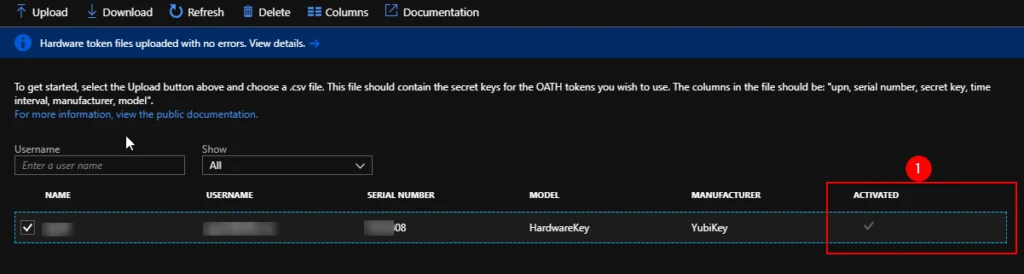

Verify that the YubiKey is Activiated in the dashboard.

Step 3) Configure MFA settings on the User account

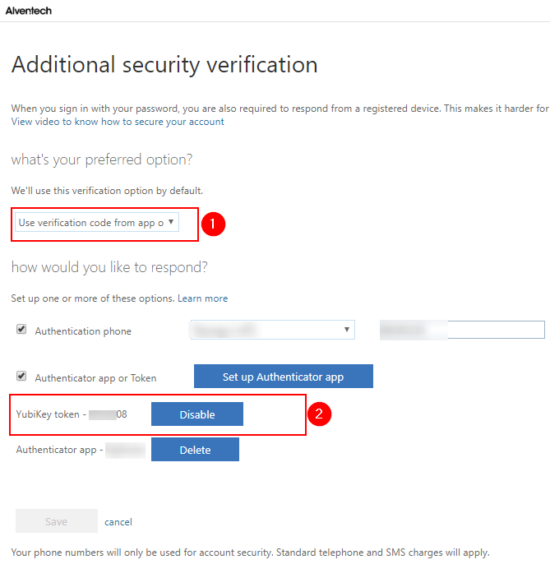

Go to https://aka.ms/mfasetup with the user who has been assigned the YubiKey. In the settings, change the preferred auth Options to Use verification code from app. You can see that the user has already been assigned the Yubikey token. Enter the token from the Yubico Autenticator on your pc.

Logout from MFA portal. Start a new login to portal.office.com

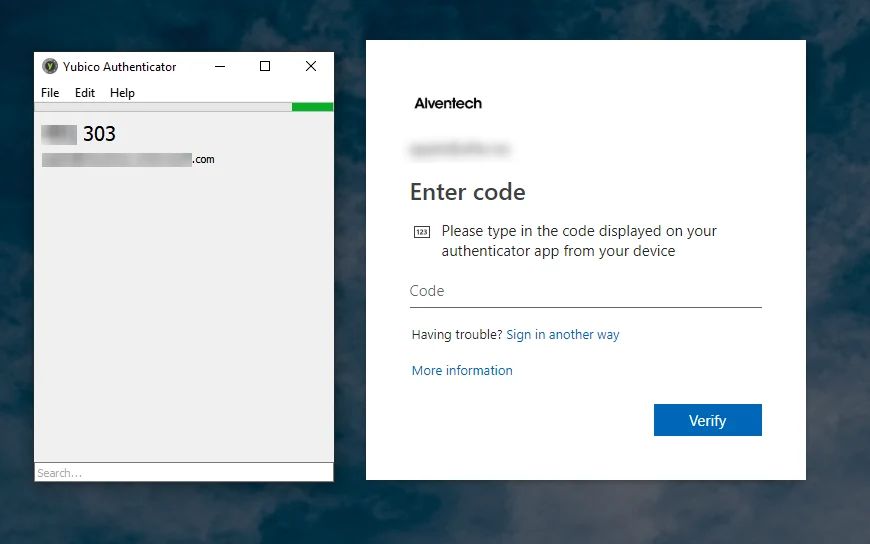

you will now see that you will get prompted with Enter Code. Add your code from the Yubico autenticator (Yubikey must be plugged in to get OTP) and verify that is works.

Summary

As stated this is only a public preview, and currently only works with
OATH-TOTP SHA-1 and you need the Yubico authenticator app. So it would have been nice to see if these can go next step using the HTOP and Password-less. In comparison with other Hardware tokens, Yubico has some competition from token2.com and deepnetsecurity.com, and I will look into these later:)

As part of the deployment process, I could have used Self Service Hardware token setup, but this limit the administrator part to track all the Hardware keys.

It’s still a lot of potentials in this space, so it will be exciting to see how this develops 🙂
